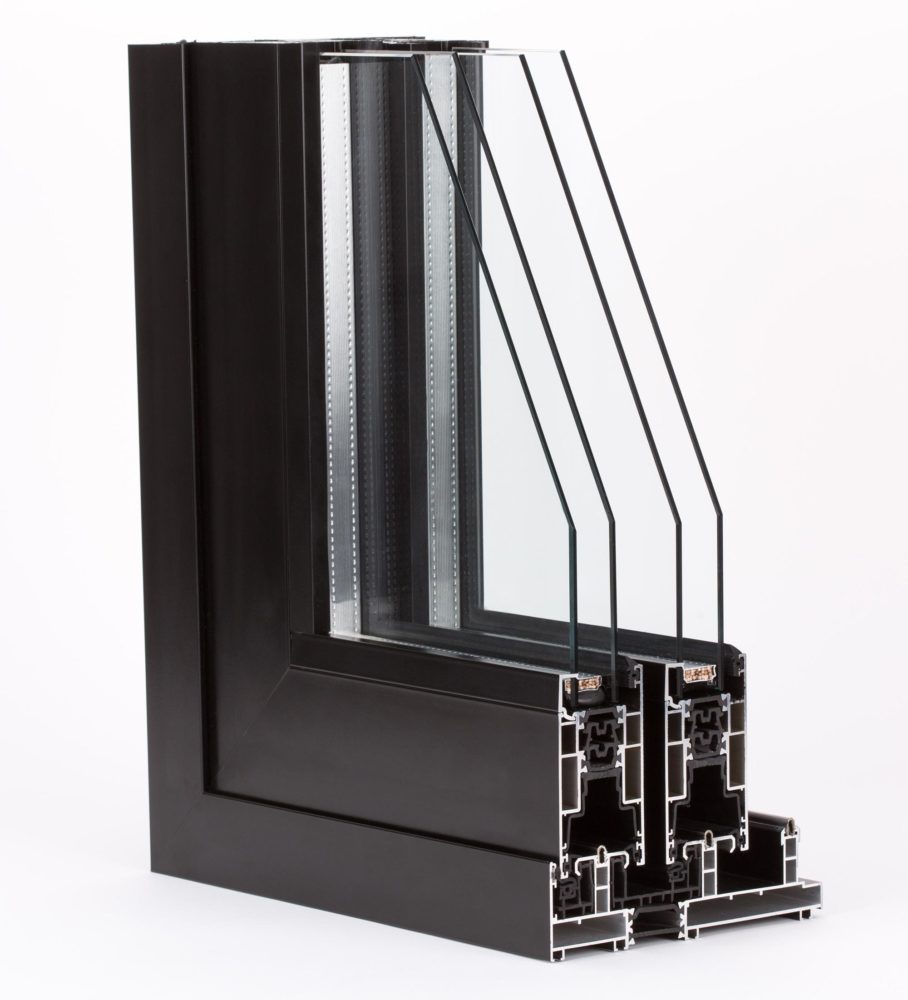

SL550

Technical data summary

  • High thermal insulation Uw=0.8 to 1.20 W/(m2*K).
  • Thermal break system done in high grade polyamide (reengineered for North American markets)
  • Easy operation with lift and slide mechanism
  • Patio doors that are up to 300 kg
  • Contemporary aesthetics with straight line design
  • Elastic block (EPDM) seals
  • A complete selection from the RAL chart is available, special wood grain pattern, other anodized surface treatment methods.
  • Exceptional water tightness and sound insulation.
  • All North American certifications (CAN/CSA, NAFS, AAMA/WDMA, A440-00) for air permeability, water tightness, wind resistance, coefficient of thermal conductivity and noise reduction.
  • The double (6-5mm) or triple glass (4-3-4 mm) comes in 29mm to 53mm thickness for a better thermal and sound insulation.

Handles

System details

Security

Alumalco windows provide extra security levels with anti-burglary certifications.

Certification

Each window is certified for air permeability, water tightness, wind resistance, coefficient of thermal conductivity and for noise reduction.

Insulation

The double or triple glass comes in 29 mm thickness for a better thermal and sound insulation.

Sizes

Two sizes of sashes, small or large, and four frame sizes.

Locks

We offer multi-locking locks, laser-cut keys, adding an element of security to your home.

Paint

A complete selection from the RAL chart is available, special wood grain pattern, other anodized surface treatment methods.

GET IN TOUCH
TO LEARN MORE.

Advantages

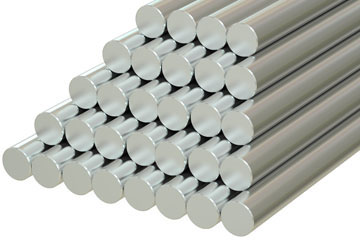

The advantages of aluminium

The characteristics of aluminum lend themselves perfectly to sustainable fenestration. The aluminum profile supports larger openings, allowing more luminosity. Finishing options make maintenance easier.
Each component is certified and tested in rigorous conditions in order to be part of the Alumalco product line. We strongly believe in the use of aluminum in all our product line.

Glazing

At Alumalco we take our glass very seriously. It is the largest surface of all opening and fixed systems, therefore it needs to be a product of the highest quality. Our Glazing is offered in either DOUBLE PANE or TRIPLE PANE.

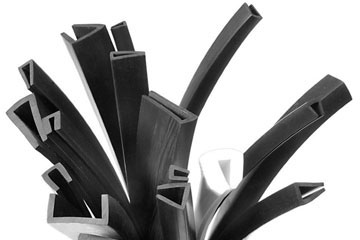

EPDM Rubber gaskets

EPDM has excellent resistance to ozone, sunlight, severe weather conditions, oxygen, acids, alkalis, aging. It has outstanding color stability, a high heat resistance and dielectric qualities.
